BSA MASTER EQ

BSA MASTER EQ with launch discount until December 31st.

Regular price $20.00

1. INTRODUCTION

BSA Master EQ is a precision stereo equalizer plugin designed for mastering and critical mixing. The program offers clean, transparent sound with discrete controls.

2. INSTALLATION

macOS: Run the provided installer package (.pkg) to install VST3, AU, CLAP, and Standalone versions.

Default Locations:

- VST3: /Library/Audio/Plug-Ins/VST3

- AU: /Library/Audio/Plug-Ins/Components

- CLAP: /Library/Audio/Plug-Ins/CLAP

- Standalone: /Applications

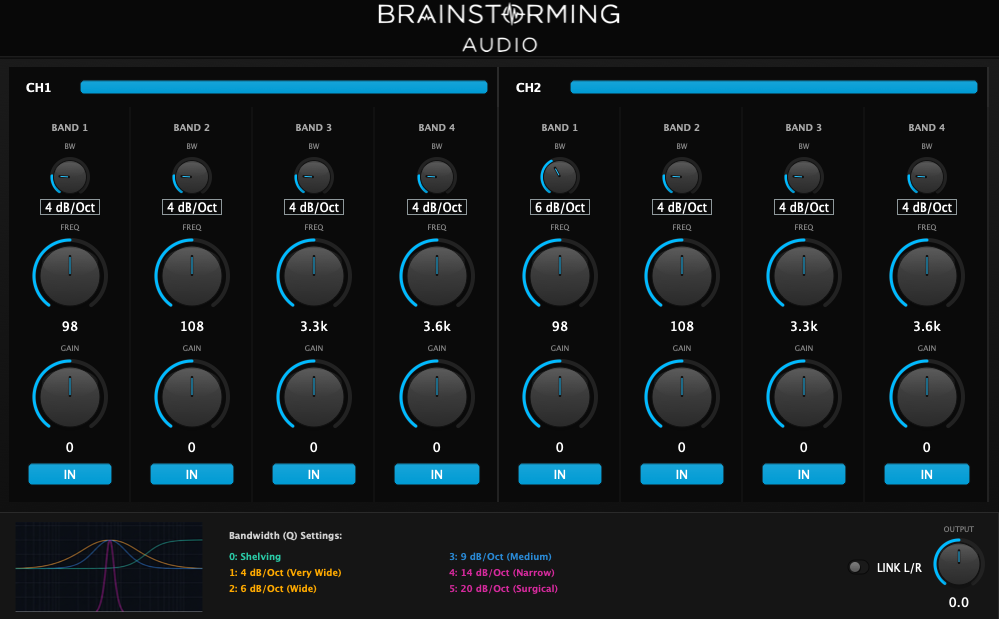

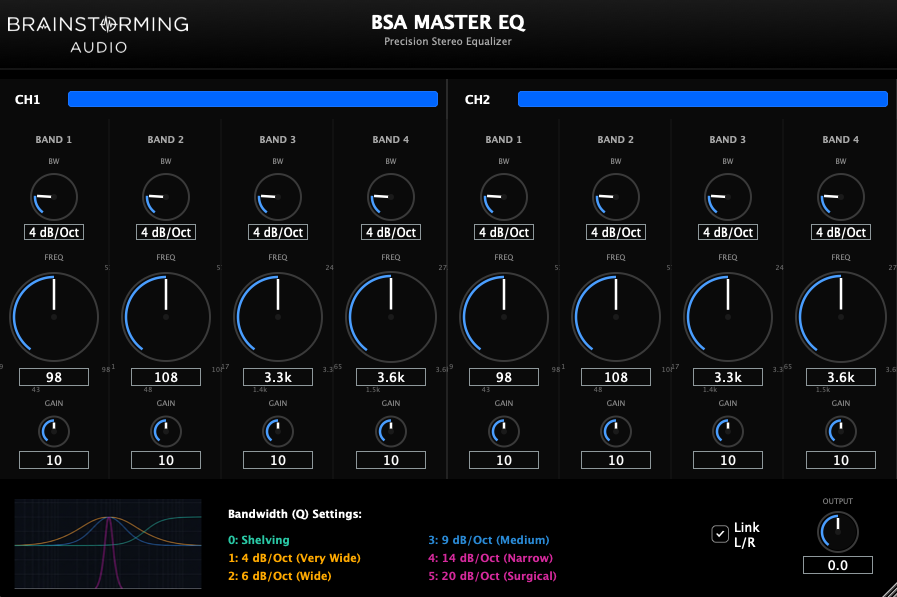

3. INTERFACE OVERVIEW

The interface is divided into two identical channels (CH1 and CH2), each featuring 4 equalization bands.

4. PARAMETERS AND CONTROLS

Each of the 4 bands features the following controls:

FREQUENCY (FREQ)

Selects the center frequency of the band.

- Band 1: 19Hz - 530Hz

- Band 2: 21Hz - 572Hz

- Band 3: 617Hz - 24kHz

- Band 4: 665Hz - 27kHz

GAIN (GAIN)

Adjusts the boost or cut at the selected frequency.

- Range: +/- 10dB (approximate) in discrete steps.

- Default: 0dB (Unity Gain).

BANDWIDTH (BW / Q)

Controls the shape and width of the frequency band.

- 0: Shelving

- 1: 4 dB/Oct (Very Wide / Musical)

- 2: 6 dB/Oct (Wide)

- 3: 9 dB/Oct (Medium)

- 4: 14 dB/Oct (Narrow)

- 5: 20 dB/Oct (Surgical / Notch)

ACTIVE (IN Button)

Turns the individual band ON (Active) or OFF (Bypassed).

- Lit: Band is Active.

- Unlit: Band is Bypassed.

5. GLOBAL CONTROLS

LINK L/R: When enabled (checked), any parameter change made on Channel 1 is automatically mirrored to Channel 2, and vice versa. This ensures perfect stereo synchronization for mastering.

OUTPUT: Master output gain control to compensate for overall level changes.

6. VISUAL AIDS

A legend table and graph are provided at the bottom of the interface to visualize the curve shapes corresponding to each Bandwidth (Q) setting.

7. SYSTEM REQUIREMENTS

Operating System:

- macOS 10.13 (High Sierra) or higher (Intel or Apple Silicon)

- Windows 10 or higher (64-bit)

Processor: Intel Core i5, AMD Ryzen 5, or Apple M1/M2/M3

RAM: 4GB (8GB recommended)

Disk Space: 100MB free

Host: Any DAW compatible with VST3, AU, or CLAP (64-bit)

8. SUPPORT

For support and updates, please contact Brainstorming Audio.

Email: support@brainstormingaudio.com

Website: www.brainstormingaudio.com
